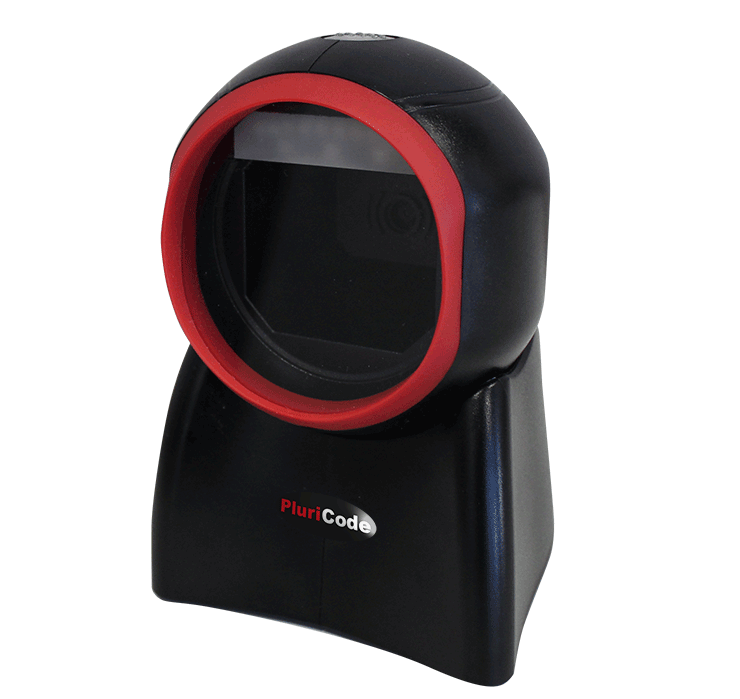

Pluricode 7100E Omni directional 2D Image scanner
practical and hand-free
The Pluricode 7100E Omni directional 2D Image scanner is a barcode scanner with Image 2D scanning mode. Supports multiple languages and all types of operating system. It reads at speeds equal to 2500 scans per second and is practical and light.
Description Pluricode 7100E Omni directional 2D Image scanner
Speed and reliability with the Pluricode 7100E 2D omnidirectional reader
The Pluricode 7100E Omni directional 2D Image scanner is a barcode scanner with a high sensitivity image sensor.
In fact, it guarantees excellent reading of the barcode even on round surfaces, such as bottles.
Pluricode 7100E supports multiple languages and all types of operating system, such as windows xp, 7, 8, 10, android, IOS and LINUX.
Furthermore, its scanning speed is 2500 times per second.
It is small and not bulky. In fact, it weighs only 450 g and measures 110mm x 124mm x 152mm. The Pluricode 7100E Omni directional 2D Image scanner has application especially in the retail sector, as it allows the cashier operator to read bar codes hands-free. Thanks to its solid and resistant structure, it survives falls from a maximum height of 1.2 meters.
Technical specifications Pluricode 7100E Omni directional 2D Image scanner
Scan mode: Omni directional 2D Image scanning
Alarm mode: LED light alarm, Buzzer alarm
Scan rate: 2500times/sec
Reading Angle: Horizontal ±55°, Vertical ±37.5°
Resolution: SXGA-W(Width1280*Height*1024) Ratio(5:4)
Barcode type: Australian Post, Aztec, BPO, Canada Post, Codabar, Codablock, Code 11, Code 39, Code 93, Code 128/EAN128, DataMatrix, Dutch Post, EAN.UCC Composite, Interleaved 2 of 5, Japan Post, Matrix 2 of 5, MaxiCode, MicroPDF417, MSI Code, PDF417, Planet, Plessey Code, Postnet, QR code, RSS, Standard 2 of 5, Telepen, TLC 39, UPC/EAN
Interfaces: USB (Drive Free) ,USB Virtual RS232(Install Drive), RS232(Drive Free), USB COM
Operating temperature: -20°C ~ 60°C
Storage temperature: -30°C ~ 70°C
Humidity: 5% to 95% (Non-condensing)
Drop: Designed to withstand 1.2m drops
Dimensions (LxWxH): 110mm x 124mm x152mm
Weight: 450g
Color: black
