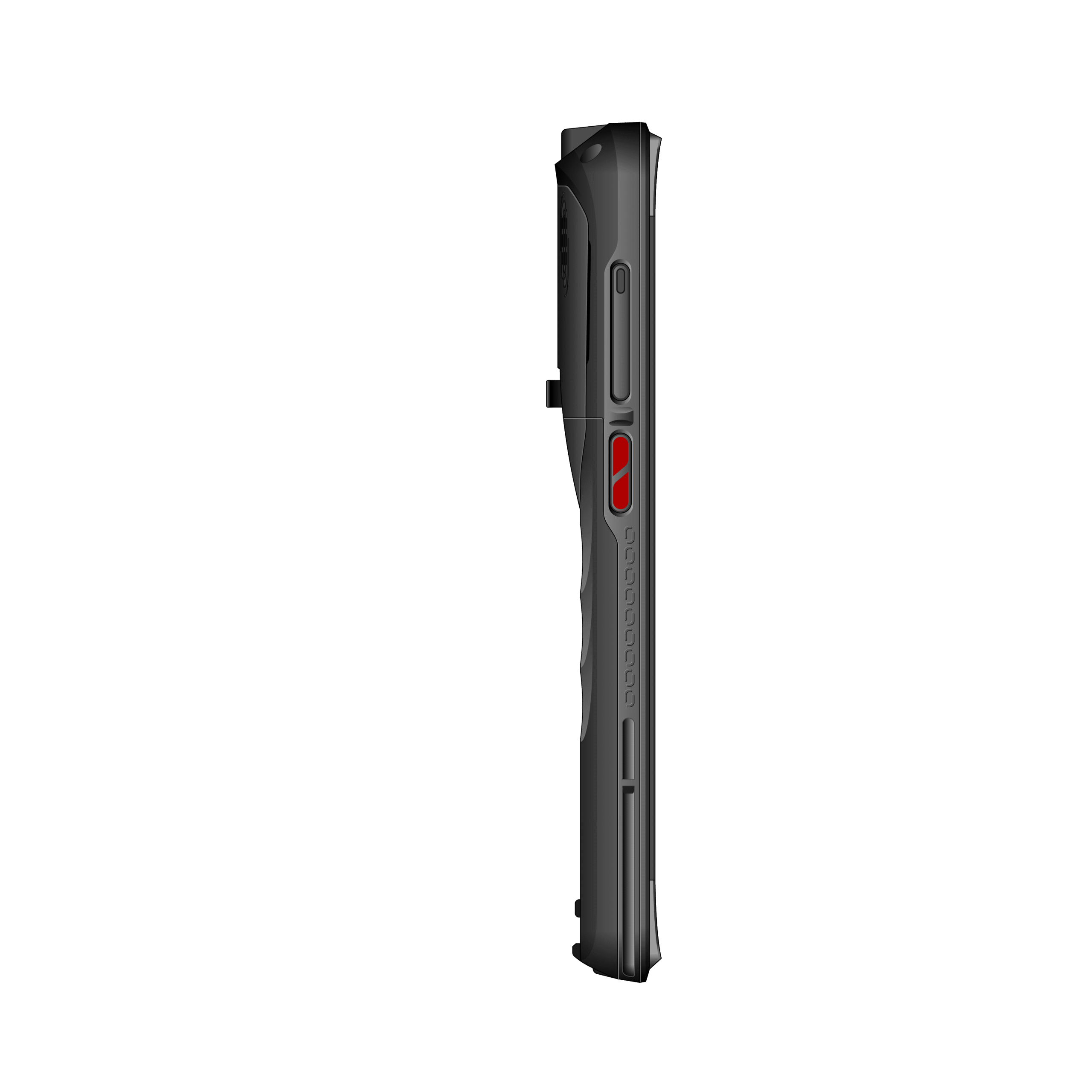

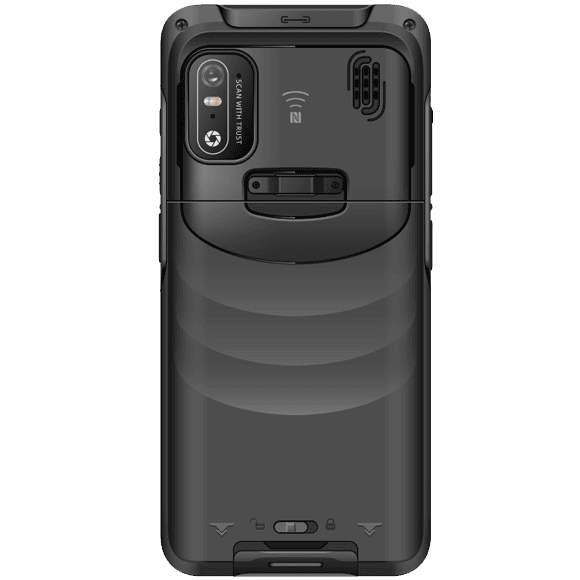

Plus 80 and Plus 80R Handheld Terminals
Plus 80 and Plus 80R Handheld Terminals - Image 2
Plus 80 and Plus 80R Handheld Terminals - Image 3

Plus 80 and Plus 80R Handheld Terminals

Professional Solutions for Your Business

The Plus 80 and Plus 80R represent the next evolution in professional data collection handheld terminals. Built on a 2.0 GHz octa-core architecture and running Android, these devices combine ergonomic design with extreme durability (IP67-rated). Whether you need a versatile scanner for retail operations (Plus 80) or a powerful UHF RFID reader for the warehouse (Plus 80R), this series ensures continuous operation thanks to high-capacity batteries and hot-swap support.

SKU: TERICI003
REQUEST INFORMATION
CODICE PLURISERVICE: TERICI003
Retail
Transport and Logistics
Production
Fashion

Operating Systems

Android

Description Plus 80 and Plus 80R Handheld Terminals

Plus 80: The All-in-One Mobile Computer

The Plus 80 is the ideal companion for those seeking a balanced and cutting-edge device. It runs Android 13 (upgradable to version 15) and comes with GMS/AER certification. Its standout feature is power flexibility: a removable 4600 mAh battery with hot-swap support, allowing you to replace the battery without powering off the device, ensuring 24 hours of uninterrupted work.

Plus 80R: Uncompromising UHF RFID Performance

For large-scale inventory operations, the Plus 80R integrates a powerful UHF RFID module. Capable of reading tags at distances over 15 meters (up to 30 meters in optimized open environments), this terminal dramatically speeds up data collection. To support the high workload of RFID modules, it features an ultra-large 12,200 mAh battery.

REQUEST INFORMATION

Technical specifications Plus 80 and Plus 80R Handheld Terminals

Operating System:
PLUS 67: Android 13, upgradable to Android 15, with GMS/AER certification
PLUS 67R: Android 11, with GMS certification

Processor: Octa-core 2.0 GHz
Memory: 4+64 GB, with option for 6+128 GB

Wireless Communication: WWAN 4G/3G/2G, dual-band WiFi (2.4 GHz & 5 GHz), Bluetooth 5.0, and GPS (GPS, Glonass, Beidou, Galileo)

Display: 5.72-inch IPS

Operating Environment:

  • Temperature: −20°C to 55°C

  • Humidity: 5% to 95% (non-condensing)

  • Durability: IP67 sealing

Data Collection:

  • Scanning Engine: Professional 1D/2D reader

  • NFC: Operating frequency 13.56 MHz

  • RFID (PLUS 67R only): US 902–928 MHz and EU 865–868 MHz. Supports ISO18000-6C/EPC C1G2 protocol with reading distance up to 15 meters (depending on the tag) or over 30 meters in open environments

  • Cameras: Front 5 MP, Rear 13 MP with autofocus

Battery:

  • PLUS 67R: Up to 12,200 mAh

  • PLUS 67: Removable 4,600 mAh battery with hot-swap support

Dimensions & Weight:

  • PLUS 67: 162 × 78.5 × 19.8 mm

  • PLUS 67R: 169.9 × 87.7 × 138 mm

Certifications: CE, GMS, RoHS, IP67, and AER
