RFID Reader Plus RPT-100
UHF Reader and Barcode Reader 2 in 1

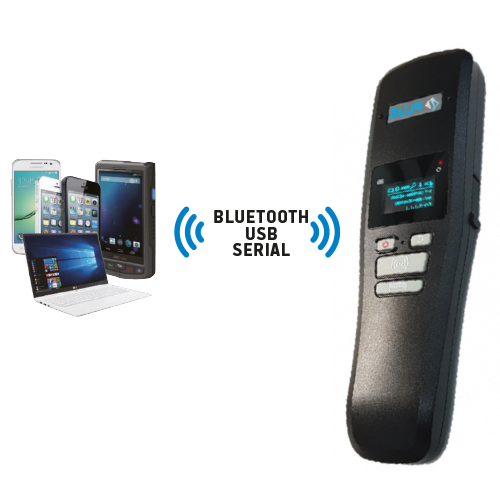

The RFID Reader Plus RPT-100is a reading device for automatic identification which, with a simple button, alternates the reading of RFID tags and 1D and 2D bar codes, maximizing ease of use and productivity. Easy to hold and direct, it communicates via Bluetooth, USB or Serial with other devices (PC, iPhone and Android Smartphone)
Description
RFID Reader Plus RPT-100: UHF RFID and Barcode 2 in 1
The RFID Reader Plus RPT-100 can read both RFID tags and 1D and 2D barcodes simply by pressing the relative button. It offers communication flexibility and immediately reflects the reading of the results using the HID interface. If the connection is not available, batch mode enables the collection of up to 1000 RFID tags / 60-byte barcodes. Selectively search for different tags and upload data to the host device at any time when the connection becomes available again.
Reads multiple RFID tags instantly and simultaneously and quickly acquires 1D and 2D barcodes, even if dirty, damaged or poorly printed.
It is small and easy to handle, its dimensions are 64 x 220 x 27 mm and it weighs only 246 g.
Technical specifications
OS Support:
Windows 10,8,7,Vista XP Movile, CE, MAC OS X, iOS 7 and higher, Android 6.0 and lower
Protocol Standards:
EPC Global Gen2 ISO 18000-6C
Reader Chip: Impinj R2000
Display: 1.3” Blue OLED
Memory: RAM : 64KB, ROM : 512KB
Key: Power, Control, RFID Scan, Barcode Scan, Reset
Battery: 3,300 mAh Li-ion
Bluetooth: Bluetooth v4.1 Dual Mode (BT SPP, BLE, HID)
Serial: Virtual COM (USB to Serial)
Magconn: Comply with Virtual COM (Option)
1D Scanner: Linear Imager
2D Scanner: Array Imager
Dimension: 64(W)x220(H)x27(D)
Weight: 246g
